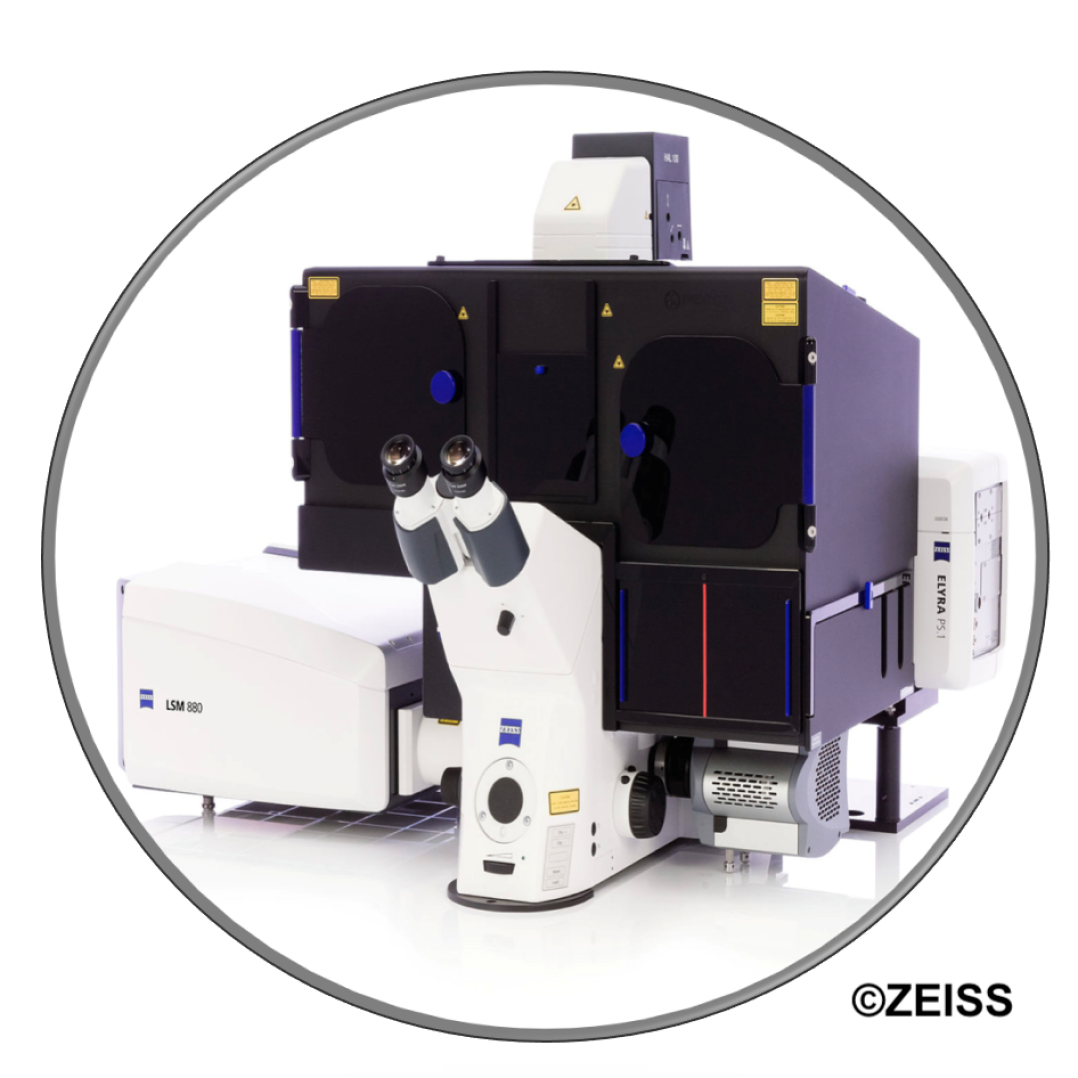

Type:

• Confocal Laserscanning and Structured illumination microscope

Laser Lines:

• 405 nm Diodelaser (30 mW), 458, 488, 514 nm Argonlaser MultiLine (25 mW), 561 nm, 633 nm

Objectives:

• 10x (Plan-Neofluar 0.3), 20x (Plan-Apochromat 0.8 M27), 63x (Plan-Apochromat 1.4 OIL DIC) and 100x (Plan-Apochromat 1.46 OIL DIC) Objectives

Detectors:

• Scanhead with 32 channel GaSsP PMT plus 2 channel MA-PMT

Add-ons:

• Live-Cell incubation unit with integrated temperature and CO2 control, Definite Focus system, Motorized XYZ Piezo-Stage for tiled/multi-position imaging

Software:

• Zeiss Zen Black

Type:

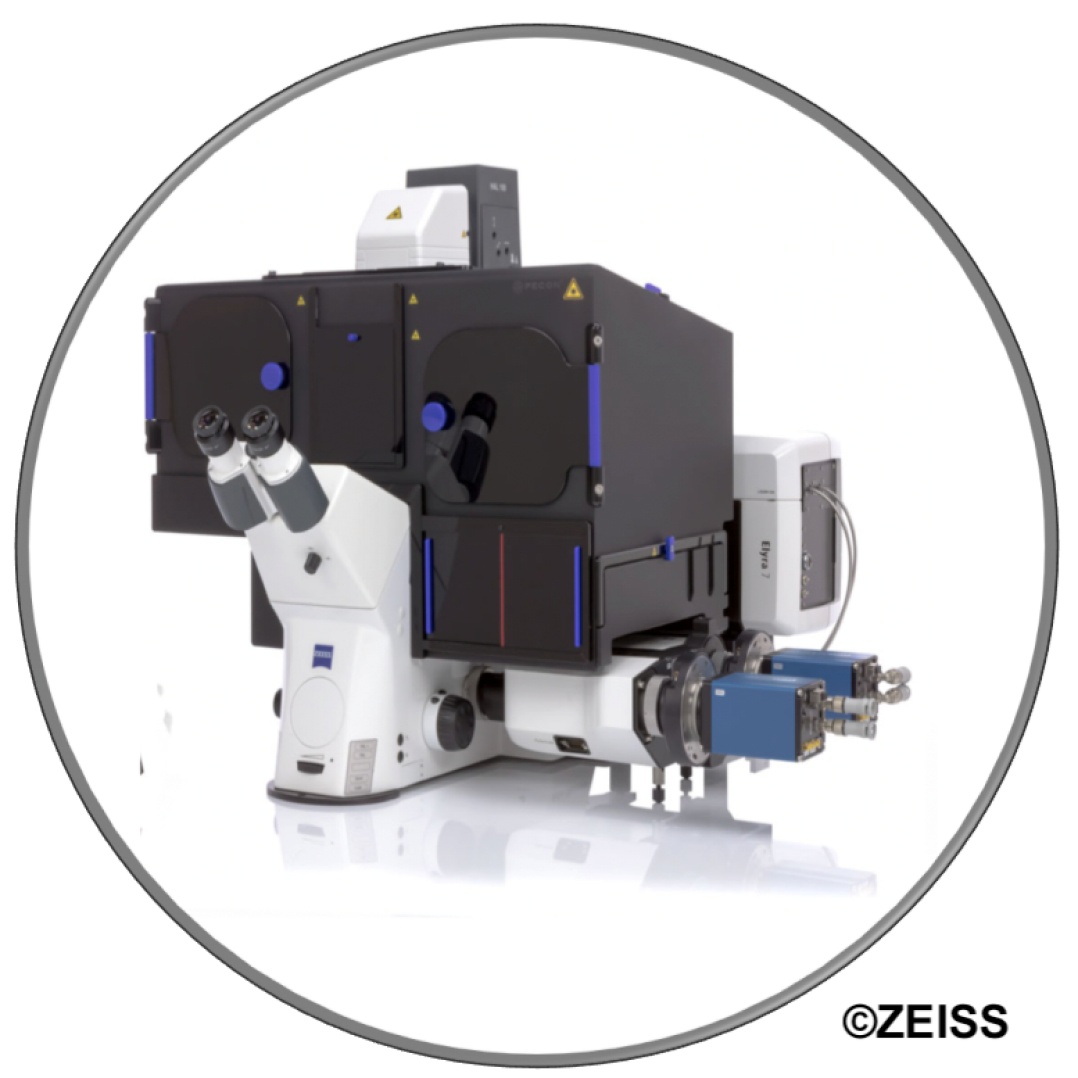

• Lattice Structured illumination microscope (Lattice-SIM)

Laser Lines:

• 488 nm (100 mW), 561 nm (100 mW) and 647 nm (100 mW)

Objectives:

• 10x (Plan-Neofluar 0.3), 40x (C-Apochromat 1.2 W Korr M27) and 63x (Plan-Apochromat 1.4 OIL DIC)

Detectors:

• 2x pco.edge sCMOS camera with high Quantum efficiency (effective pixels: 1280 × 1280; pixel size 6.5 μm × 6.5 μm; QE: 82%; dynamic range 15 bit)

Add-ons:

• 70 nm resolution upgrade (SIM2), Live-Cell incubation unit with integrated temperature and CO2 control, 2 Laser-Line Duo-Link System, Definite Focus 2 system, Motorized XYZ Piezo-Stage for tiled/multi-position imaging, Optogenetics upgrade

Software:

• Zeiss Zen Black

Type:

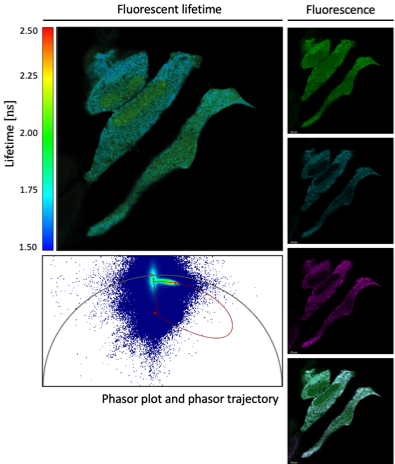

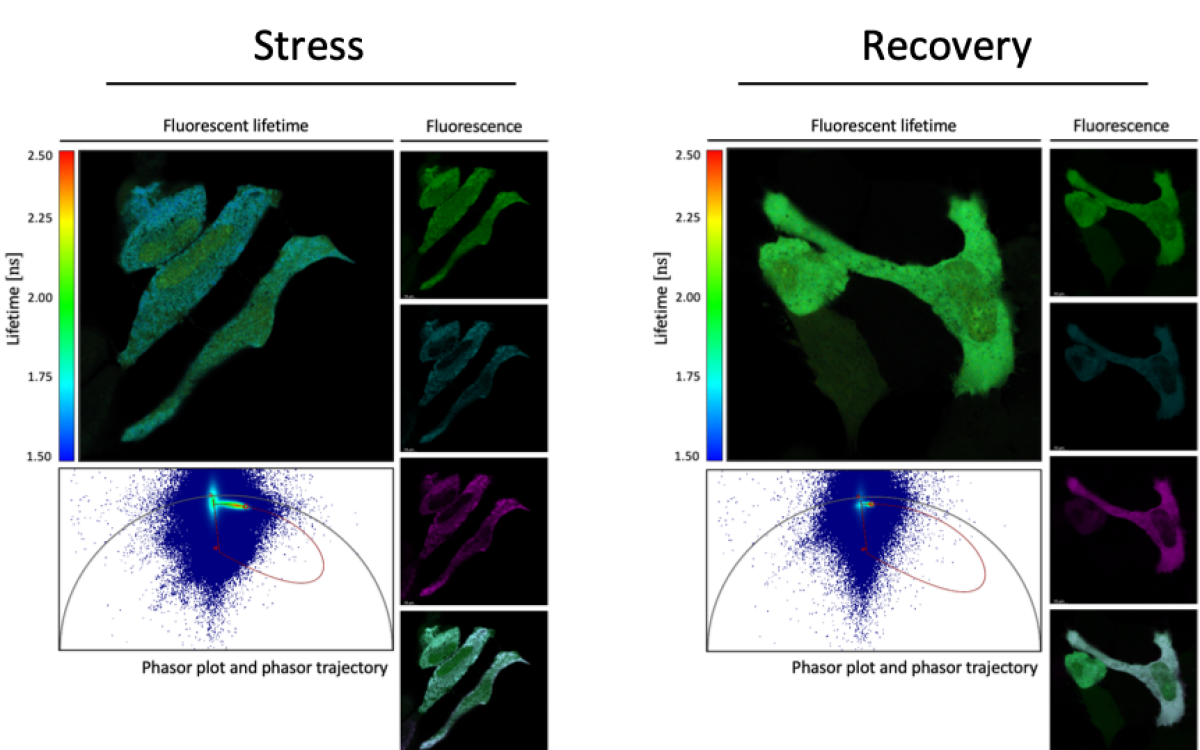

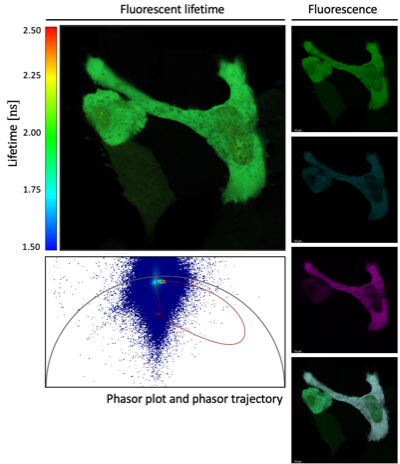

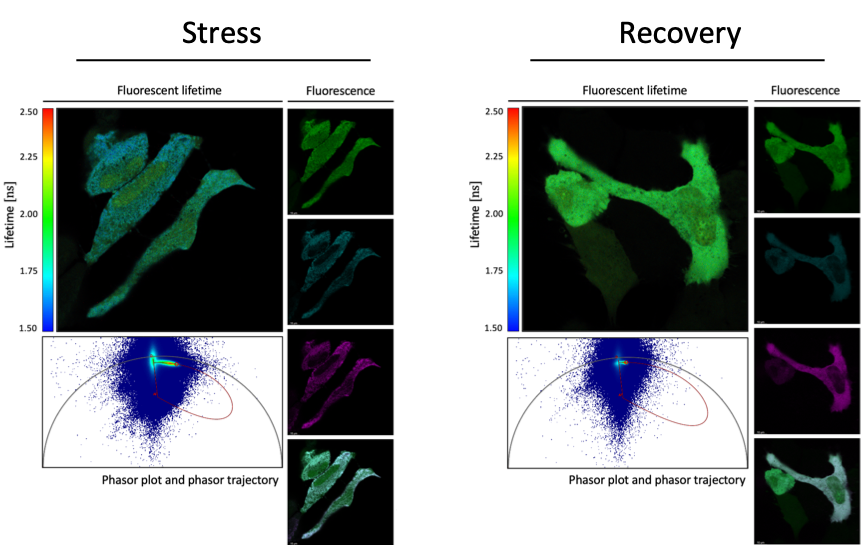

• Fluorescent Lifetime Confocal Laser-Scanning Microscope

Laser Lines:

• pulsed, tuneable White light laser 440-790 nm (1.1-3.5 mW), 405 nm (50 mW)

Objectives:

• 10x (Plan-Apo 0.4), 20x (Plan-Apo 0.75 CS), 40x (Plan-Apo 1.25 Glycerin MotCorr CS2), 63x (Plan-Apo 1.40 Oil CS2), 86x (Plan-Apo 1.20 Water MotCorr STED),

Detectors:

• 2x Power HyD S SP, 2x Power HyD X SP, 1x Power HyD R for up to 850 nm detection

Add-ons:

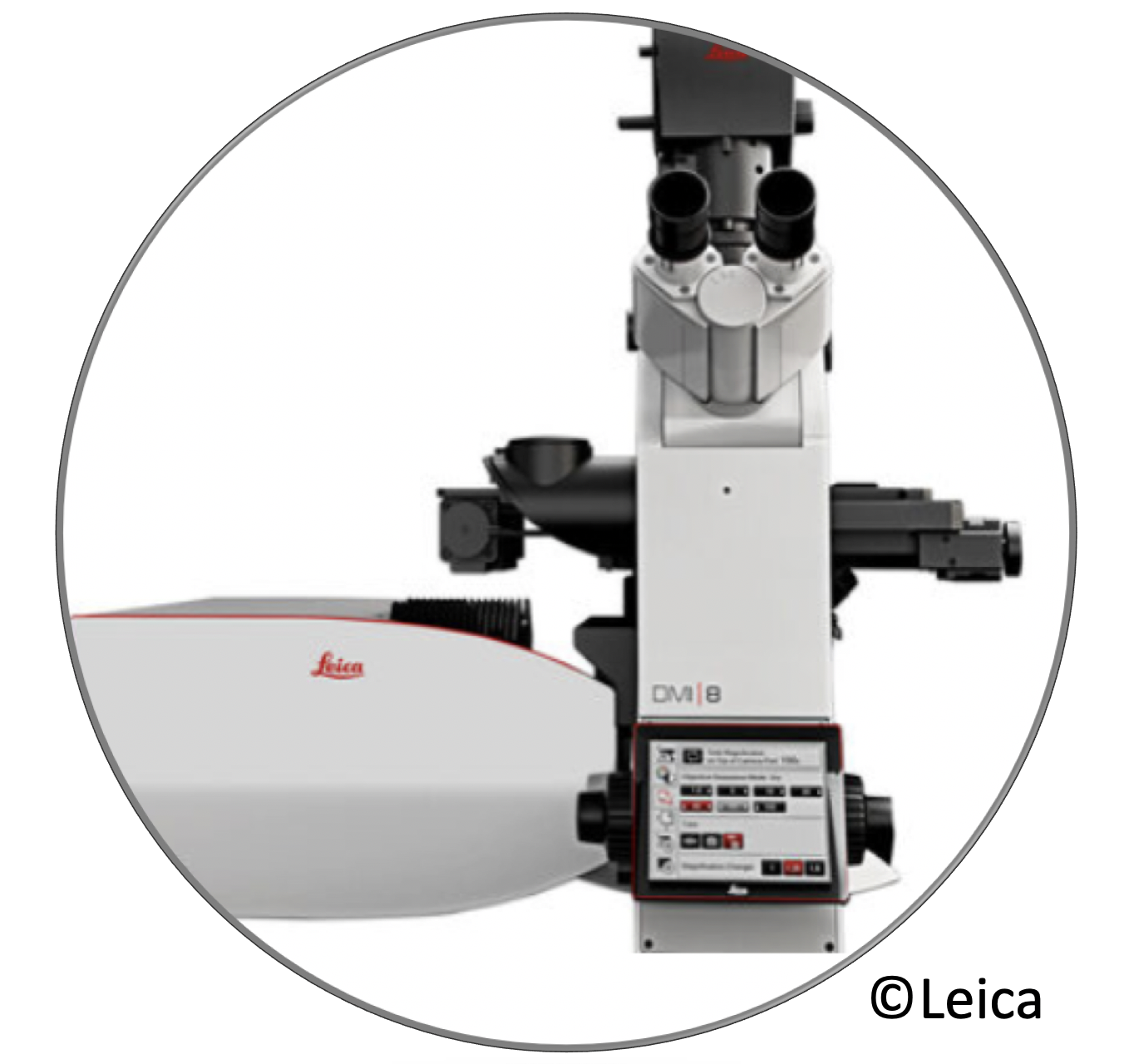

• Stellaris 8 FALCON, Lightning Expert, FLIM and FCS

Software:

• Leica LasX

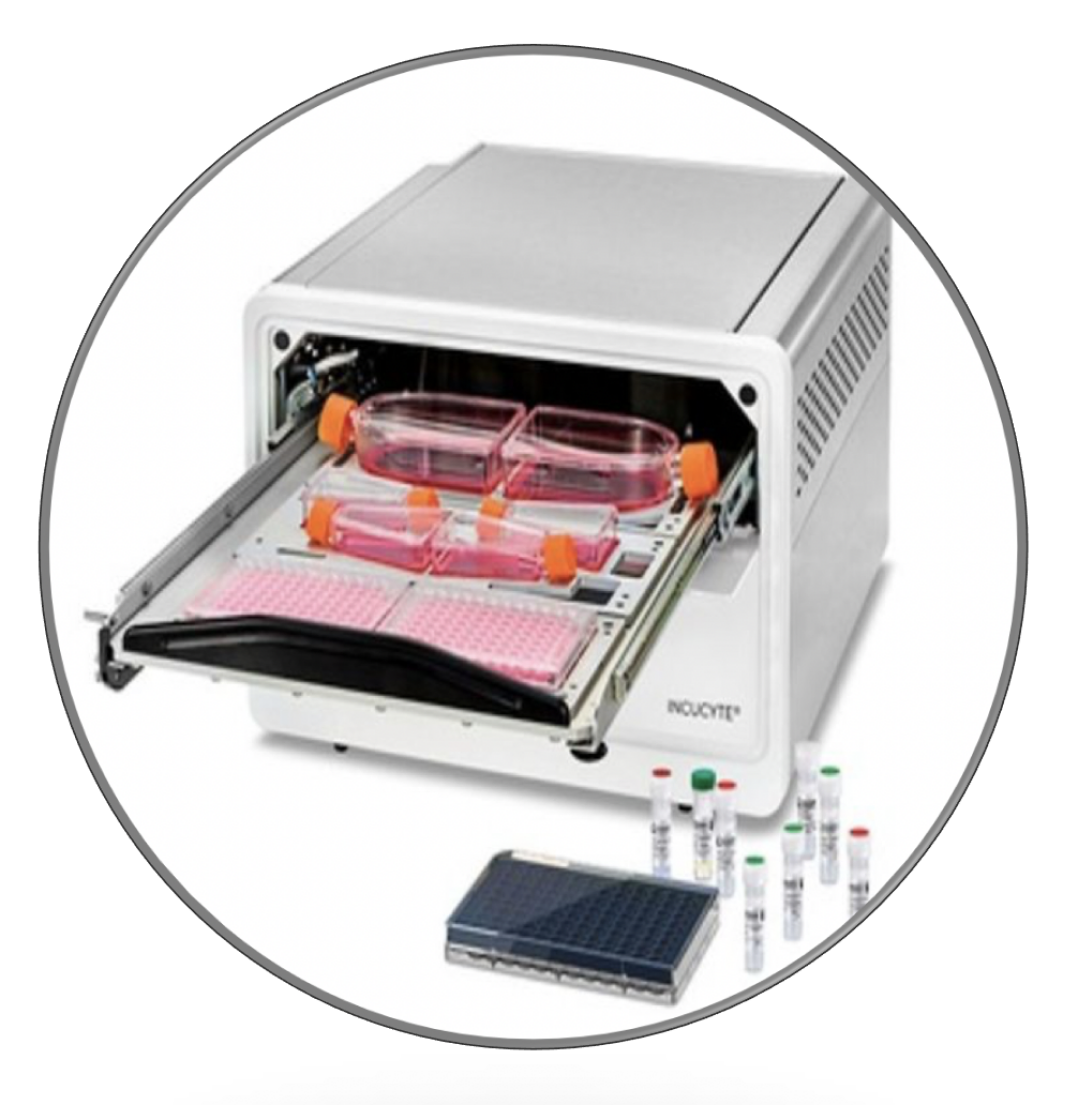

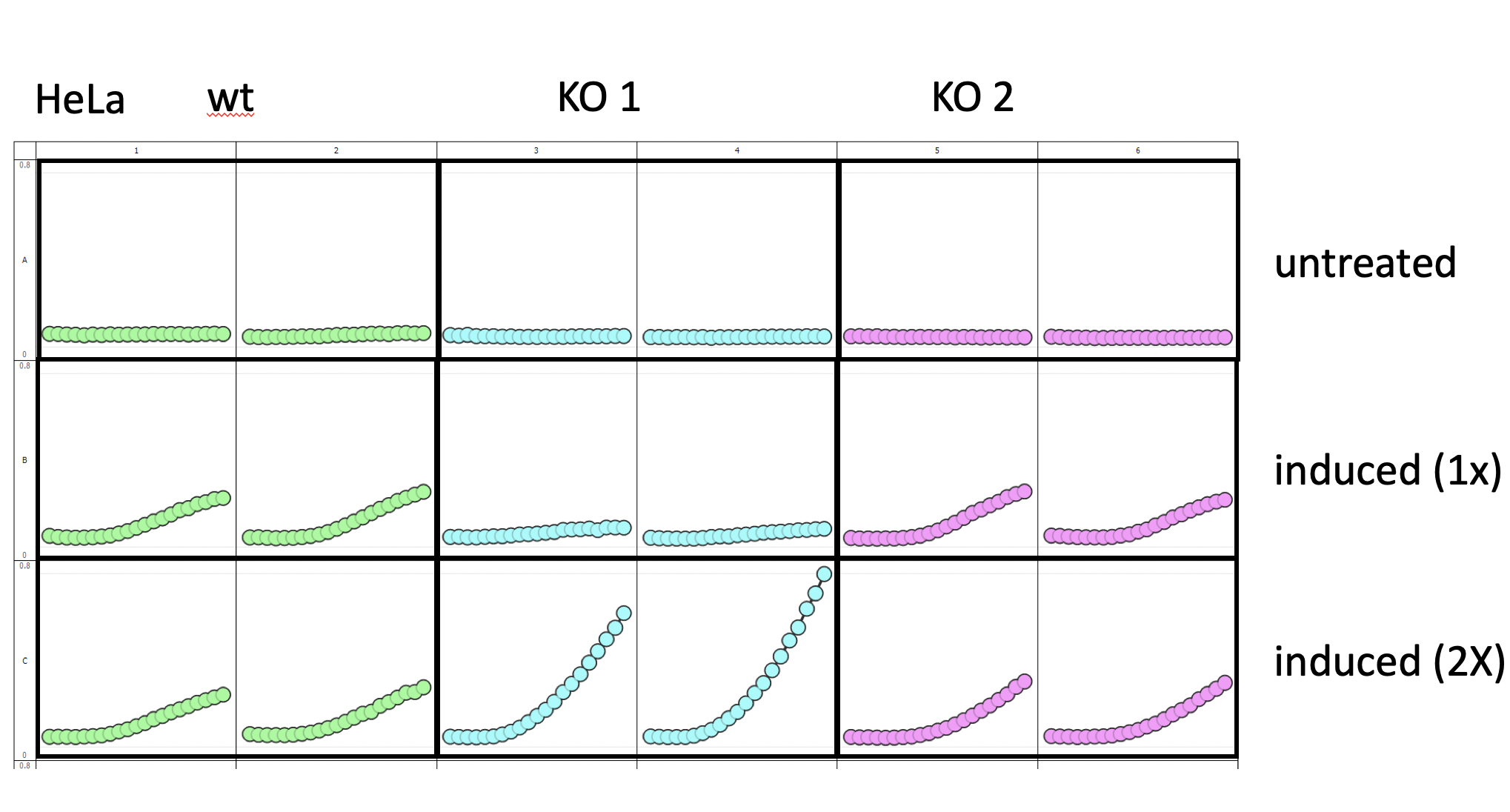

Type: Live-Cell Analysis System

Imaging Modalities:

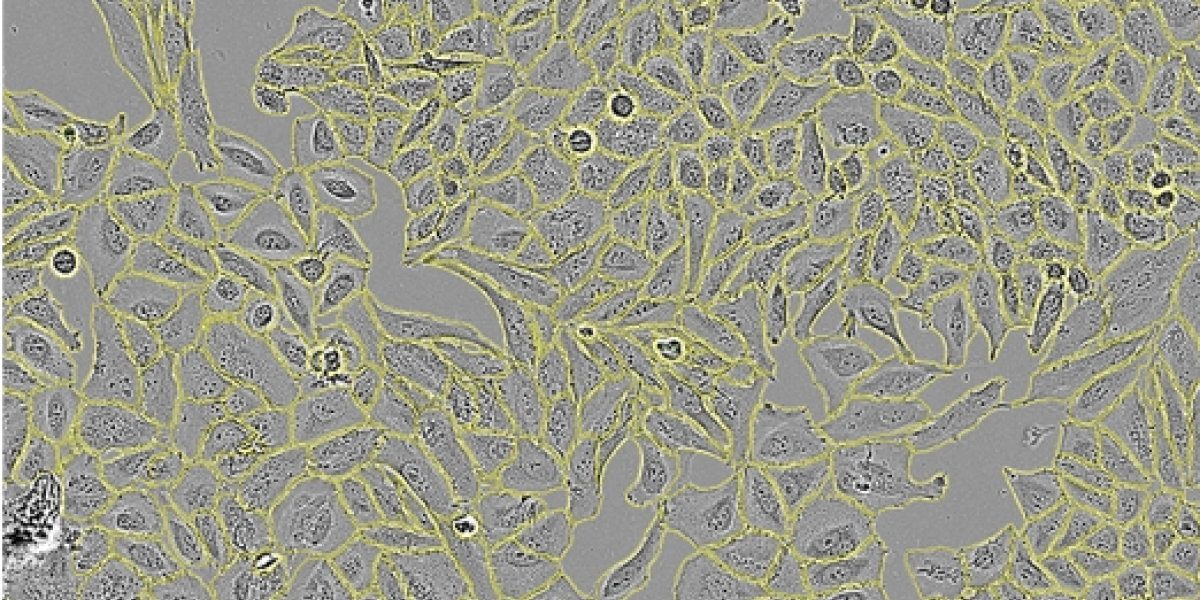

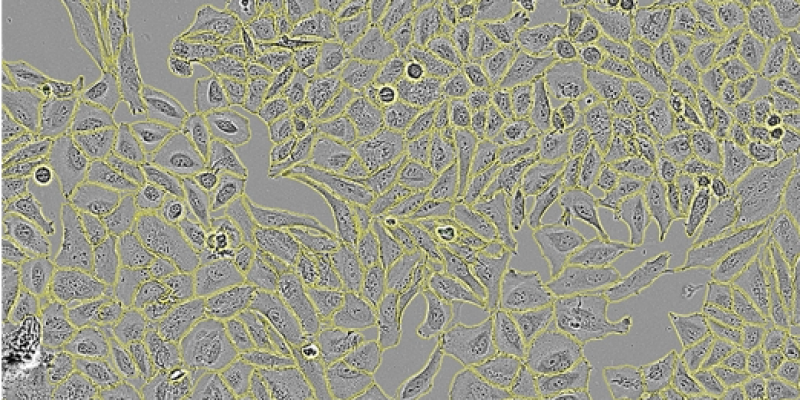

• HD Phase-Contrast, 488 and 555 nm channel

Objectives:

• 4x, 10x and 20x

Features:

• Automated image acquisition and analysis

• Multi-user, multi-application support through remote network capability

• Support for three interchangeable vessel trays and over 700 vessels, compatible with flask, dishes, slides and microplates up to six microplates in parallel.

Add-on Modules:

• AI Cell Health, NeuroTrack, Cell Migration Kit, Organoid, Spheroid, Advanced Label-free Classification

Software:

• Sartorius Incucyte
